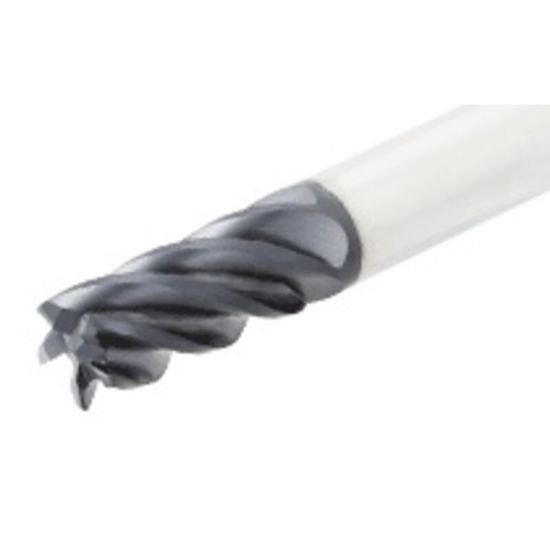

Picture of Iscar ECI-H5R 750-1.87W04CF IC900 Dia 3/4 SH 0.7500 LOC 1.8700 OAL5.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0400 1.02mm ChatterFree

Iscar ECI-H5R 750-1.87W04CF IC900 Dia 3/4 SH 0.7500 LOC 1.8700 OAL5.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0400 1.02mm ChatterFree

Part Number: ISC5623160 0.750 x 0.750 x 1.870 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289685
Vendor: Sussex Tool and Supply
$434.50
ISCAR ECI-H5R 750-1.87W04CF IC900 Standard Helix End Mill Carbide AlTiN Corner Radius 0.0400 1.02MM Standard Flute Flutes 5 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 5
Tool Dia 0.7500 19.05MM - 3/4
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.8700 47.50MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0400 1.02MM
Inch/Metric Inch
Helix Angle 37
Center Cutting Center Cutting
