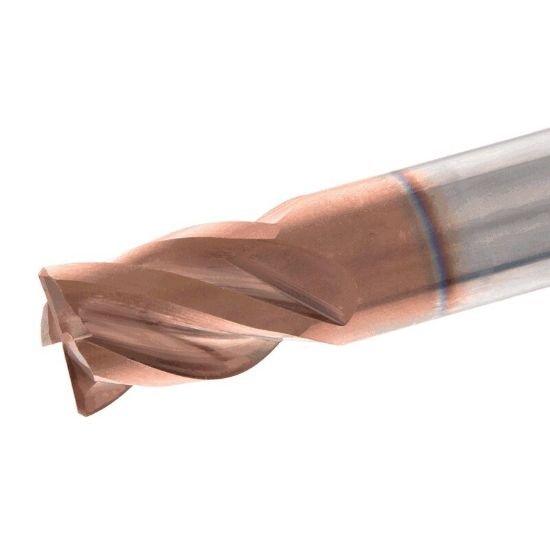

Picture of Iscar ECI-H4S 750-750W750CFE4 IC608 Dia 3/4 SH 0.7500 LOC 0.7500 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Iscar ECI-H4S 750-750W750CFE4 IC608 Dia 3/4 SH 0.7500 LOC 0.7500 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Part Number: ISC5669394 0.750 x 0.750 x 0.750 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289743
Vendor: Sussex Tool and Supply
$209.32
ISCAR ECI-H4S 750-750W750CFE4 IC608 Standard Helix End Mill Carbide AlTiCrSiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End SOLIDMILL Carbide Great for hard to cut steels and high harndness matirials
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Gray Iron, <53HRC Steel, Stainless Steel, Ductile Iron
Coating AlTiCrSiN
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.7500 19.05MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
Neck Length 0.7500 19.05MM
