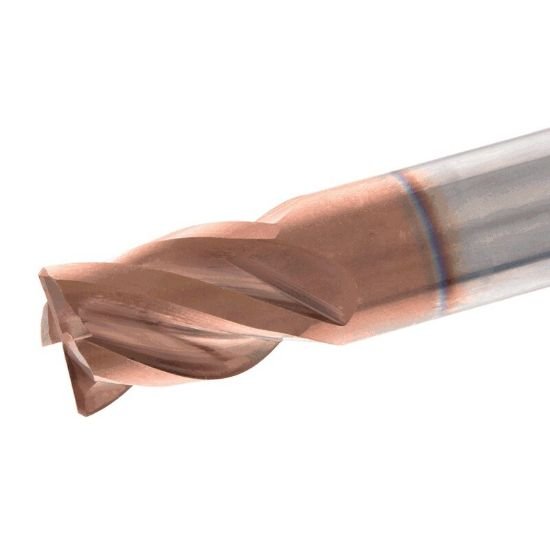

Picture of Iscar ECI-H4S 625-625C625CFE3.5 IC608 Dia 5/8 SH 0.6250 LOC 0.6250 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Iscar ECI-H4S 625-625C625CFE3.5 IC608 Dia 5/8 SH 0.6250 LOC 0.6250 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Part Number: ISC5669391 0.625 x 0.625 x 0.625 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189517
Vendor: Sussex Tool and Supply
$125.94
ISCAR ECI-H4S 625-625C625CFE3.5 IC608 Standard Helix End Mill Carbide AlTiCrSiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End SOLIDMILL Carbide Great for hard to cut steels and high harndness matirials
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <53HRC Steel, Stainless Steel, Ductile Iron
Coating AlTiCrSiN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.6250 15.88MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 36
Center Cutting Center Cutting
Neck Length 0.6300 16.00MM
