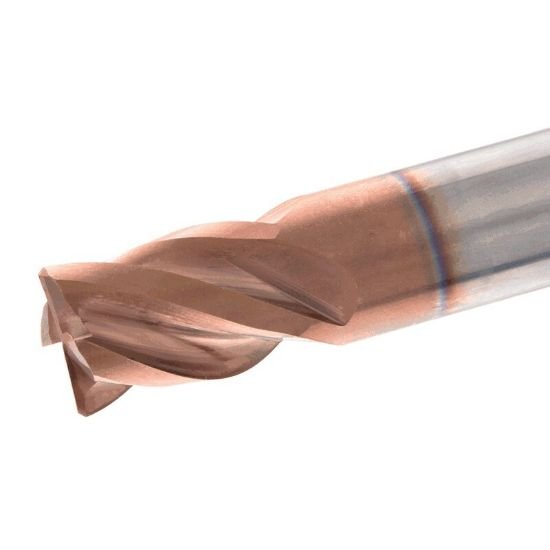

Picture of Iscar ECI-H4S 500-500W500CFE3 IC608 Dia 1/2 SH 0.50 LOC 0.50 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Iscar ECI-H4S 500-500W500CFE3 IC608 Dia 1/2 SH 0.50 LOC 0.50 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Part Number: ISC5669390 0.500 x 0.500 x 0.500 x 3.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1183409
Vendor: Sussex Tool and Supply
$97.44

Description

ISCAR ECI-H4S 500-500W500CFE3 IC608 Standard Helix End Mill Carbide AlTiCrSiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End SOLIDMILL Carbide Great for hard to cut steels and high harndness matirials
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Of Cut 0.5000 12.70MM
Geometry & Angles
Helix Angle 36
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Stainless Steel, Ductile Iron
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating AlTiCrSiN
