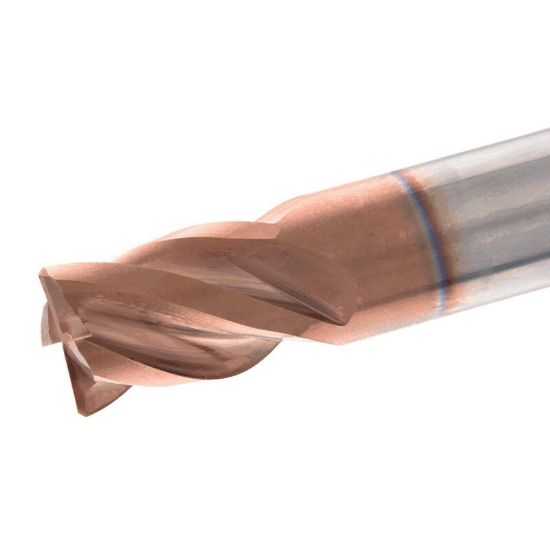

ISCAR ECI-H4S 500-500C500CFE3 IC608 DIA 1/2 SH 0.50 LOC 0.50 OAL 3.00 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5669389
Delivery date: 3-5 days
$75.63

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Great for hard to cut steels and high harndness matirials

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Texas
Application Face Milling, Slot Milling, Side Milling
Performance Rating High Performance
Coating AlTiCrSiN
Package Size 1
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Helix Angle 36°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Length Of Cut 0.5000 12.70MM
Dimension Description 0.500 x 0.500 x 0.500 x 3.000
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
End Of Tool Shape Corner Chamfer
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
