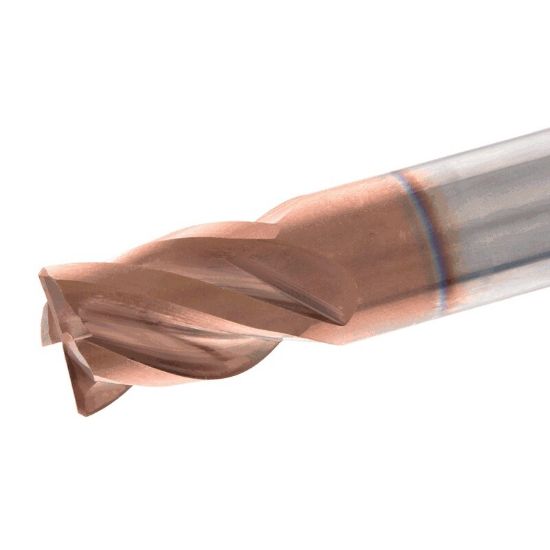

ISCAR ECI-H4S 375-375W375CFE2.5 IC608 DIA 3/8 SH 0.3750 LOC 0.3750 OAL 2.50 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5669388
Delivery date: 3-5 days
$55.14

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Great for hard to cut steels and high harndness matirials

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Coating AlTiCrSiN
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Shipping State Texas
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Dimension Description 0.375 x 0.375 x 0.375 x 2.500
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Helix Angle 36°
Neck Length 0.3800 9.65MM
Tool Material Carbide
Machine Side Connection Type Weldon
Length Of Cut 0.3750 9.53MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Chamfer
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Mold Yes
