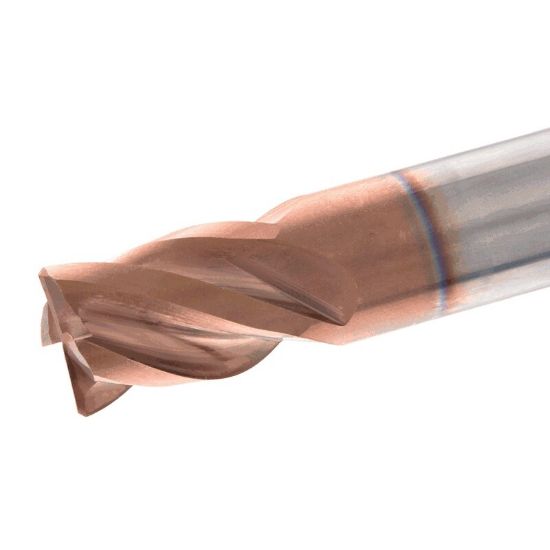

ISCAR ECI-H4S 312-312C312CFE2.5 IC608 DIA 5/16 SH 0.3125 LOC 0.3120 OAL 2.50 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5669386
Delivery date: 3-5 days
$39.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Great for hard to cut steels and high harndness matirials

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating AlTiCrSiN
Made In USA No
Application Side Milling, Face Milling, Slot Milling
Shipping State Texas
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 4
End Of Tool Shape Corner Chamfer
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard / With Neck
Helix Angle 36°
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Dimension Description 0.313 x 0.313 x 0.312 x 2.500
Length Of Cut 0.3120 7.92MM
Cutter Dia 0.3125 7.94MM - 5/16
Neck Length 0.3100 7.87MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
