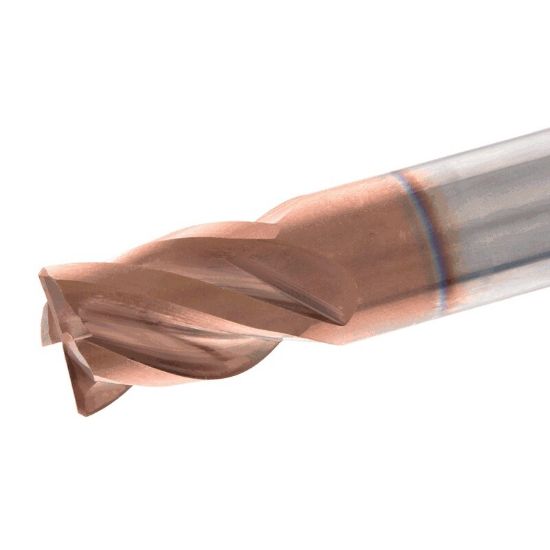

ISCAR ECI-H4S 188-188C188CFE2 IC608 DIA 3/16 SH 0.1875 LOC 0.1880 OAL 2.00 End Mill Standard Flute Standard Helix Carbide AlTiCrSiN Single End 45.0° Chamfer SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5669384
Delivery date: 3-5 days
$28.19

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Great for hard to cut steels and high harndness matirials

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Coating AlTiCrSiN
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.1875 4.76MM - 3/16
Neck Length 0.1900 4.83MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Length Type Standard / With Neck
Helix Angle 36°
Single/Double End Single End
Length Of Cut 0.1880 4.78MM
Dimension Description 0.188 x 0.188 x 0.188 x 2.000
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
End Of Tool Shape Corner Chamfer
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
