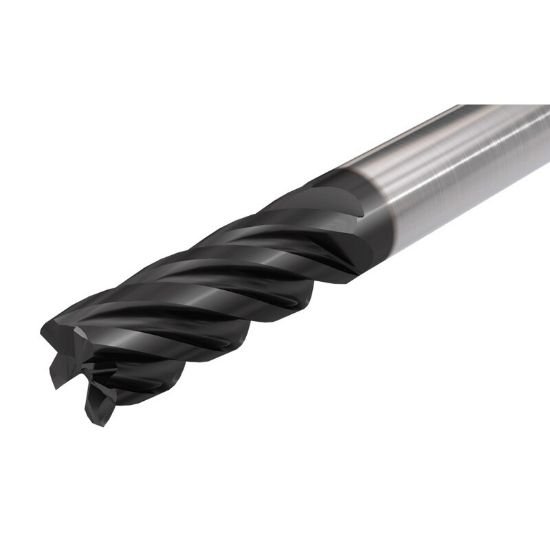

Picture of Iscar ECI-E5R625-1.56C62CF09 IC900 Dia 5/8 SH 0.6250 LOC 1.5600 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0900 2.29mm ChatterFree

Iscar ECI-E5R625-1.56C62CF09 IC900 Dia 5/8 SH 0.6250 LOC 1.5600 OAL4.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0900 2.29mm ChatterFree

Part Number: ISC5623216 0.625 x 0.625 x 1.560 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1189431
Vendor: Sussex Tool and Supply
$262.68
ISCAR ECI-E5R625-1.56C62CF09 IC900 Standard Helix End Mill Carbide AlTiN Corner Radius 0.0900 2.29MM Standard Flute Flutes 5 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5600 39.62MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0900 2.29MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
