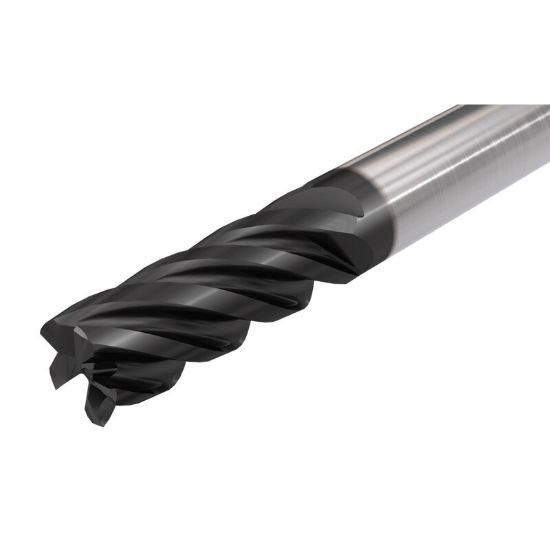

Picture of Iscar ECI-E5L375-937W37CF IC900 Dia 3/8 SH 0.3750 LOC 0.9370 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer ChatterFree

Iscar ECI-E5L375-937W37CF IC900 Dia 3/8 SH 0.3750 LOC 0.9370 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer ChatterFree

Part Number: ISC5622528 0.375 x 0.375 x 0.937 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289578
Vendor: Sussex Tool and Supply
$106.73
ISCAR ECI-E5L375-937W37CF IC900 Standard Helix End Mill Carbide AlTiN 45.0° Chamfer Chamfer Standard Flute Flutes 5 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3750 9.53MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 5
Tool Dia 0.3750 9.53MM - 3/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.9370 23.80MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
