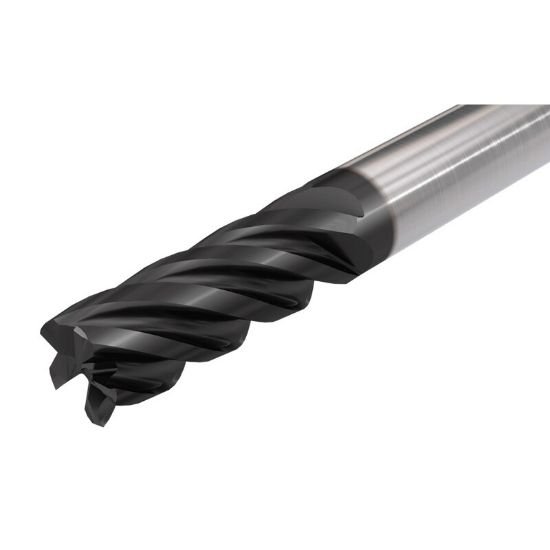

Picture of Iscar ECI-E5L312-780C312CF IC900 Dia 5/16 SH 0.3125 LOC 0.7850 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer ChatterFree

Iscar ECI-E5L312-780C312CF IC900 Dia 5/16 SH 0.3125 LOC 0.7850 OAL2.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer ChatterFree

Part Number: ISC5622526 0.313 x 0.313 x 0.785 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289576
Vendor: Sussex Tool and Supply
$76.13
ISCAR ECI-E5L312-780C312CF IC900 Standard Helix End Mill Carbide AlTiN 45.0° Chamfer Chamfer Standard Flute Flutes 5 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 5
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.7850 19.94MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
