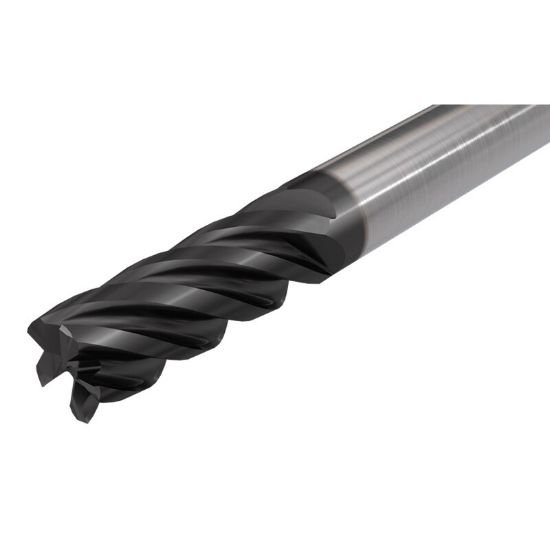

Picture of Iscar ECI-E4R500-1.0/1.5C50CF09 IC900 Dia 1/2 SH 0.50 LOC 1.00 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0900 2.29mm ChatterFree

Iscar ECI-E4R500-1.0/1.5C50CF09 IC900 Dia 1/2 SH 0.50 LOC 1.00 OAL3.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0900 2.29mm ChatterFree

Part Number: ISC5623198 0.500 x 0.500 x 1.000 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1183307
Vendor: Sussex Tool and Supply
$148.49
ISCAR ECI-E4R500-1.0/1.5C50CF09 IC900 Standard Helix End Mill Carbide AlTiN Corner Radius 0.0900 2.29MM Standard Flute Flutes 4 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.5000 88.90MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 4
Tool Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0900 2.29MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
Neck Length 1.5000 38.10MM
