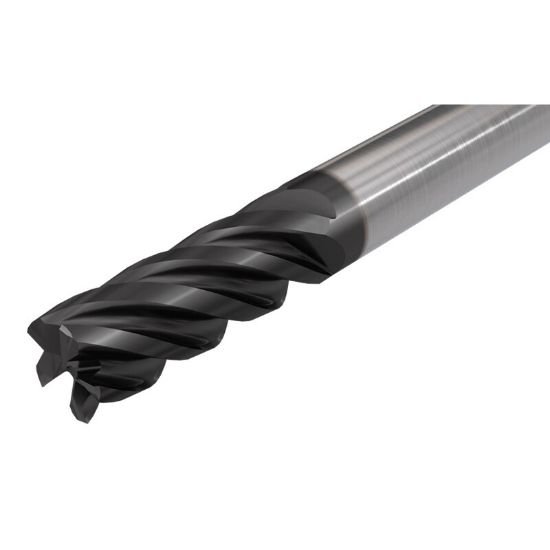

Picture of Iscar ECI-E4 750-1.5/2.25C75CFS IC900 Dia 3/4 SH 0.7500 LOC 1.50 OAL5.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer ChatterFree

Iscar ECI-E4 750-1.5/2.25C75CFS IC900 Dia 3/4 SH 0.7500 LOC 1.50 OAL5.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End 45.0° Chamfer ChatterFree

Part Number: ISC5623203 0.750 x 0.750 x 1.500 x 5.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1289689
Vendor: Sussex Tool and Supply
$390.46

Description

ISCAR ECI-E4 750-1.5/2.25C75CFS IC900 Standard Helix End Mill Carbide AlTiN 45.0° Chamfer Chamfer Standard Flute Flutes 4 Single End CHATTERFREE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / With Neck
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Neck Length 2.2500 57.15MM
Geometry & Angles
Helix Angle 38
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
