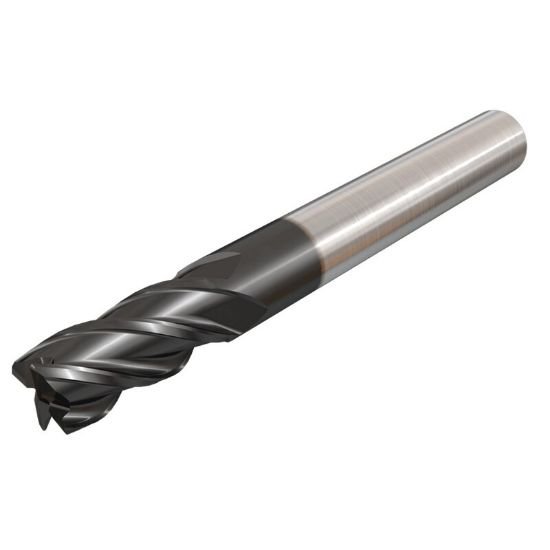

Picture of Iscar ECI-E-4R 438-750-C020 IC900 Dia 7/16 SH 0.4375 LOC 0.7500 OAL2.7500 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm SolidMill

Iscar ECI-E-4R 438-750-C020 IC900 Dia 7/16 SH 0.4375 LOC 0.7500 OAL2.7500 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0200 0.51mm SolidMill

Part Number: ISC5623115 0.438 x 0.438 x 0.750 x 2.750
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1289664
Vendor: Sussex Tool and Supply
$100.61

Description

ISCAR ECI-E-4R 438-750-C020 IC900 Standard Helix End Mill Carbide AlTiN Corner Radius 0.0200 0.51MM Standard Flute Flutes 4 Single End SOLIDMILL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 4
Tool Dia 0.4375 11.11MM - 7/16
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0200 0.51MM
Helix Angle 38
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
