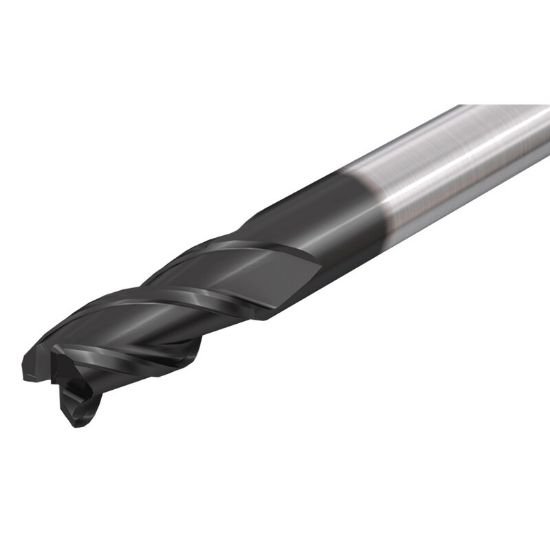

Picture of Iscar ECI-E-3R 188-375-C010 IC900 Dia 3/16 SH 0.1875 LOC 0.3750 OAL2.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm SolidMill

Iscar ECI-E-3R 188-375-C010 IC900 Dia 3/16 SH 0.1875 LOC 0.3750 OAL2.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Corner Radius0.0100 0.25mm SolidMill

Part Number: ISC5623129 0.188 x 0.188 x 0.375 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289672
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
ISCAR ECI-E-3R 188-375-C010 IC900 Standard Helix End Mill Carbide AlTiN Corner Radius 0.0100 0.25MM Standard Flute Flutes 3 Single End SOLIDMILL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0100 0.25MM
Inch/Metric Inch
Helix Angle 38
Center Cutting Center Cutting
