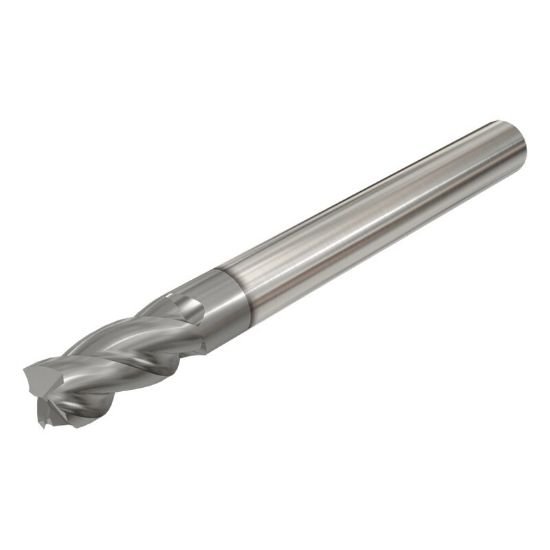

Picture of Iscar ECI-B-3 188-500-C188 IC900 Dia 3/16 SH 0.1875 LOC 0.50 OAL2.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp SolidMill

Iscar ECI-B-3 188-500-C188 IC900 Dia 3/16 SH 0.1875 LOC 0.50 OAL2.00 End Mill Standard Flute High Helix Carbide AlTiN Single End Square Sharp SolidMill

Part Number: ISC5620802 0.188 x 0.188 x 0.500 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289428
Vendor: Sussex Tool and Supply
$38.73
ISCAR ECI-B-3 188-500-C188 IC900 High Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 3 Single End SOLIDMILL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.1875 4.76MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Tool Dia 0.1875 4.76MM - 3/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
