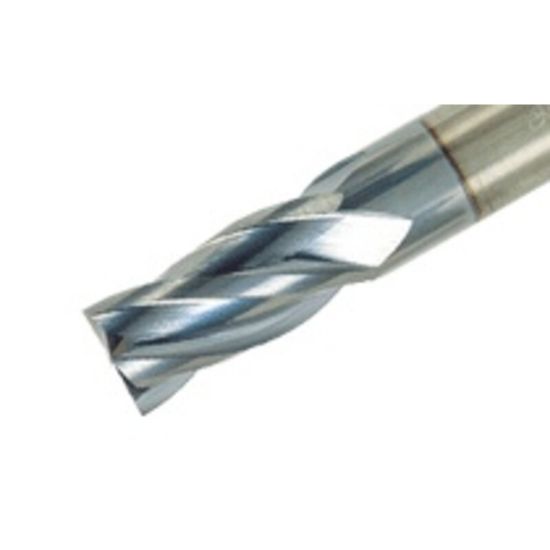

ISCAR ECI-A-4 750-1.5-C750 IC08 DIA 3/4 SH 0.7500 LOC 1.50 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5620210
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Slot Milling, Counterboring, Face Milling, Shoulder Milling
Performance Rating High Performance
Made In USA No
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 4
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
End Of Tool Shape Square
Dimension Description 0.750 x 0.750 x 1.500 x 4.000
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
