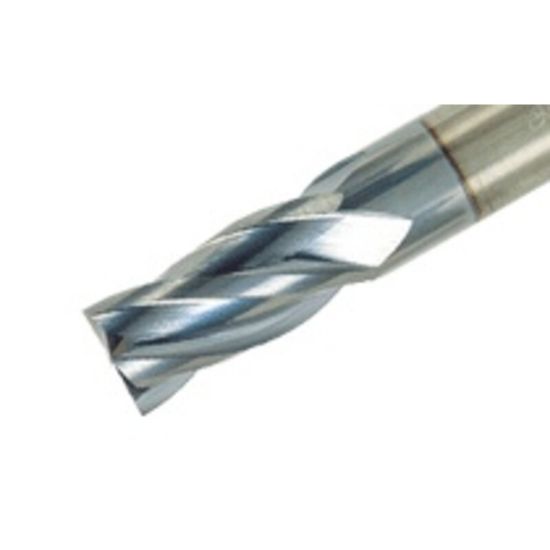

ISCAR ECI-A-4 375-1.0-C375 IC08 DIA 3/8 SH 0.3750 LOC 1.00 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5620206
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Helix Angle 30°
Cutter Dia 0.3750 9.53MM - 3/8
Overall Len 2.5000 63.50MM
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 1.000 x 2.500
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 4
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
