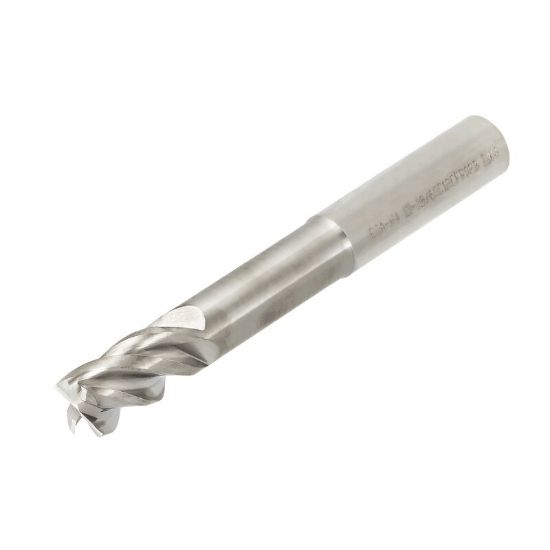

ISCAR ECAI-H4R 750-1.5/2.2C01CF IC08 DIA 3/4 SH 0.7500 LOC 1.50 OAL 5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667861
Delivery date: 3-5 days
$281.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Package Size 1
Performance Rating High Performance
Application Profile Milling, Side Milling, Slot Milling
Made In USA No
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Neck Length 2.2000 55.88MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Flutes/Inserts 4
Length Of Cut 1.5000 38.10MM
Helix Angle 40°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Single/Double End Single End
Length Type Standard / With Neck
Corner Radius 0.0100 0.25MM
Dimension Description 0.750 x 0.750 x 1.500 x 5.000
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
