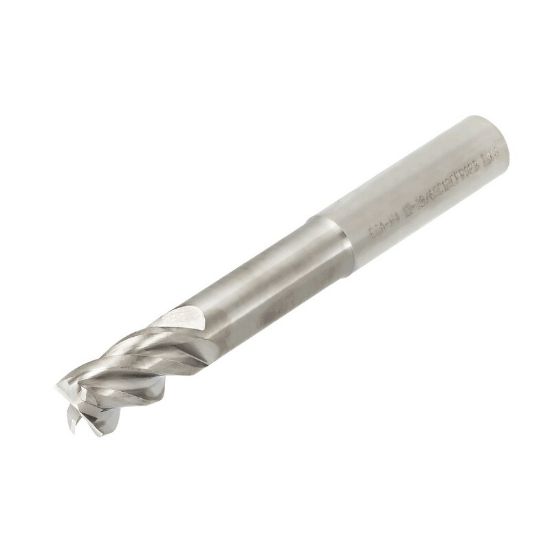

ISCAR ECAI-H4R 625-937/3.1C01CF IC08 DIA 5/8 SH 0.6250 LOC 0.9370 OAL 5.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667860
Delivery date: 3-5 days
$276.08

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Application Slot Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Length Type Standard / With Neck
Cutter Dia 0.6250 15.88MM - 5/8
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Length Of Cut 0.9370 23.80MM
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Dimension Description 0.625 x 0.625 x 0.937 x 5.000
Corner Radius 0.0100 0.25MM
Neck Length 3.1000 78.74MM
Overall Len 5.0000 127.00MM
Flutes/Inserts 4
Helix Angle 40°
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
