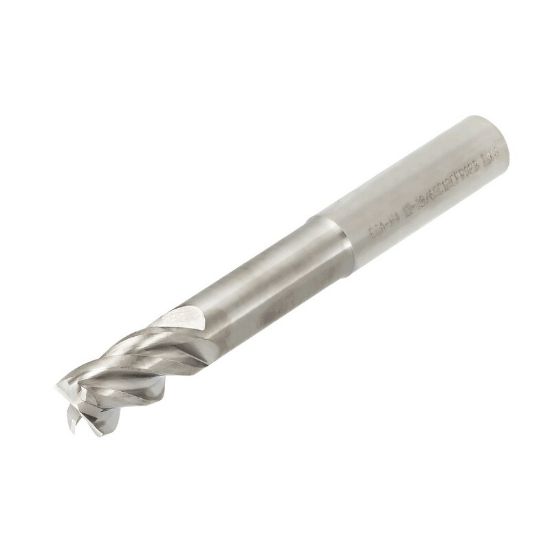

ISCAR ECAI-H4R 375-750/1.1C01CF IC08 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667855
Delivery date: 3-5 days
$73.08

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Profile Milling, Slot Milling, Side Milling
Shipping State Texas
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Overall Len 2.5000 63.50MM
Length Of Cut 0.7500 19.05MM
Helix Angle 40°
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 0.750 x 2.500
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Corner Radius 0.0100 0.25MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3750 9.53MM - 3/8
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Neck Length 1.1000 27.94MM
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
