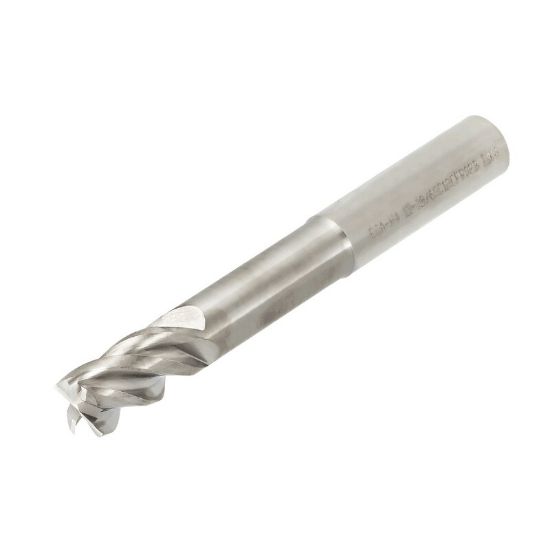

ISCAR ECAI-H4R 375-562/1.8C01CF IC08 DIA 3/8 SH 0.3750 LOC 0.5620 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667856
Delivery date: 3-5 days
$110.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Texas
Dimensional Specifications
Corner Radius 0.0100 0.25MM
Overall Len 3.0000 76.20MM
Cutter Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5620 14.27MM
Single/Double End Single End
Neck Length 1.8000 45.72MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Flutes/Inserts 4
Helix Angle 40°
Dimension Description 0.375 x 0.375 x 0.562 x 3.000
End Of Tool Shape Corner Radius
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
Automotive Yes
