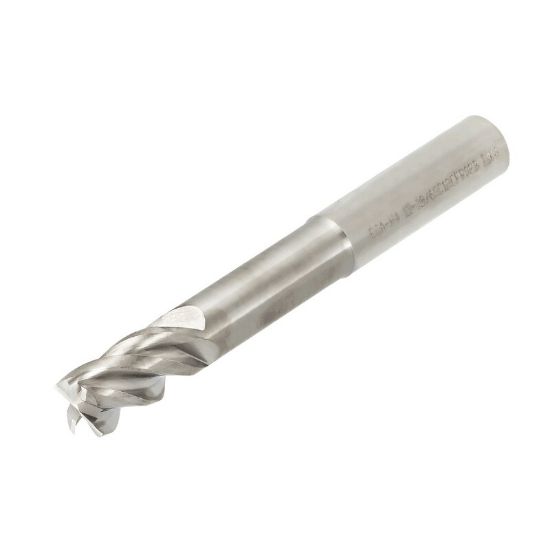

ISCAR ECAI-H4R 312-625/0.9C01CF IC08 DIA 5/16 SH 0.3125 LOC 0.6250 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667853
Delivery date: 3-5 days
$52.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Profile Milling, Slot Milling, Side Milling
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Neck Length 0.9000 22.86MM
Corner Radius 0.0100 0.25MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard / With Neck
Cutter Dia 0.3125 7.94MM - 5/16
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.313 x 0.313 x 0.625 x 2.500
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Helix Angle 40°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
