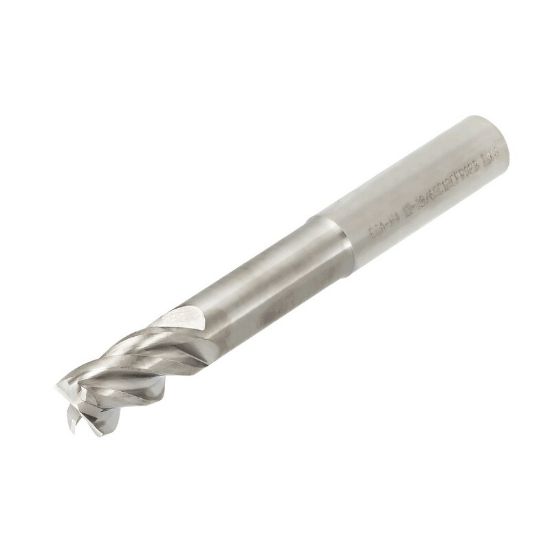

ISCAR ECAI-H4R 312-470/1.6C01CF IC08 DIA 5/16 SH 0.3125 LOC 0.4700 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667854
Delivery date: 3-5 days
$79.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Shipping State Texas
Application Profile Milling, Slot Milling, Side Milling
Made In USA No
Dimensional Specifications
Length Type Standard / With Neck
Dimension Description 0.313 x 0.313 x 0.470 x 2.500
Cutter Dia 0.3125 7.94MM - 5/16
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 0.4700 11.94MM
Helix Angle 40°
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Corner Radius 0.0100 0.25MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Neck Length 1.6000 40.64MM
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 4
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
