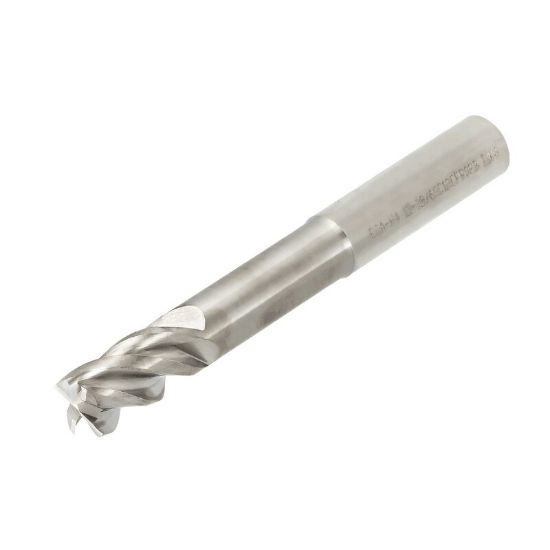

ISCAR ECAI-H4R 250-500/750C01CF IC08 DIA 1/4 SH 0.2500 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0100 0.25MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5667851
Delivery date: 3-5 days
$37.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Profile Milling, Slot Milling, Side Milling
Package Size 1
Performance Rating High Performance
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 4
Overall Len 2.5000 63.50MM
Helix Angle 40°
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Corner Radius 0.0100 0.25MM
Neck Length 0.7500 19.05MM
Length Of Cut 0.5000 12.70MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Dimension Description 0.250 x 0.250 x 0.500 x 2.500
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Automotive Yes
