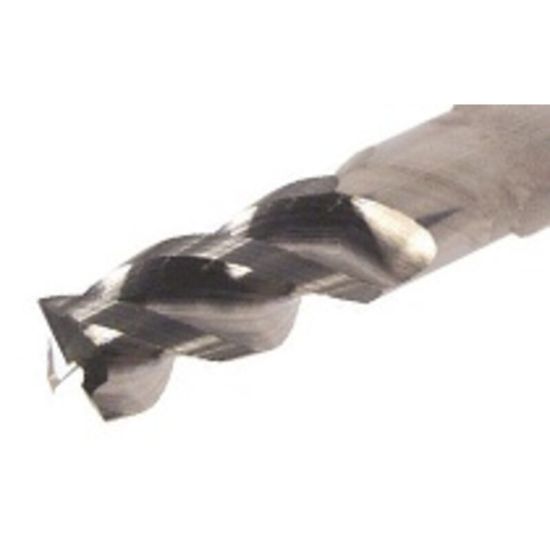

ISCAR ECAI-H3R 500-750/2.5C03CF IC08 DIA 1/2 SH 0.50 LOC 0.7500 OAL 4.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM CHATTERFREE

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622926
Delivery date: 3-5 days
$154.67

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Side Milling, Profile Milling, Slot Milling
Shipping State Texas
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.5000 12.70MM
Length Of Cut 0.7500 19.05MM
Helix Angle 40°
Single/Double End Single End
Dimension Description 0.500 x 0.500 x 0.750 x 4.500
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Flutes/Inserts 3
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Neck Length 2.5000 63.50MM
Overall Len 4.5000 114.30MM
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Medical Yes
