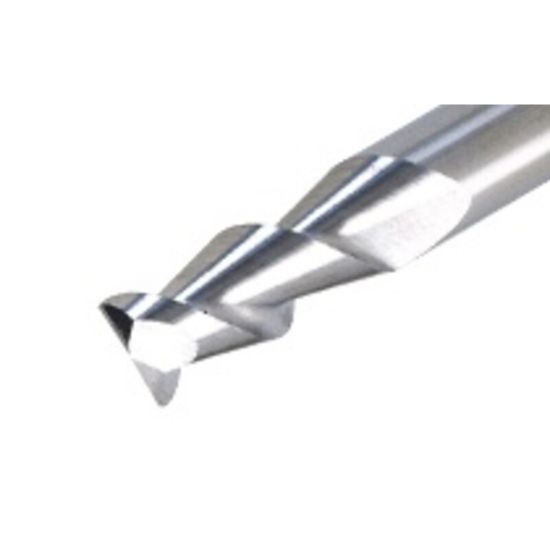

ISCAR ECAI-F-2 625-1.0-W625 IC08 DIA 5/8 SH 0.6250 LOC 1.00 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621544
Delivery date: 3-5 days
$168.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Package Size 1
Shipping State Texas
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Weldon
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Flutes/Inserts 2
Length Type Standard
Overall Len 3.5000 88.90MM
End Of Tool Shape Square
Dimension Description 0.625 x 0.625 x 1.000 x 3.500
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Helix Angle 55°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
