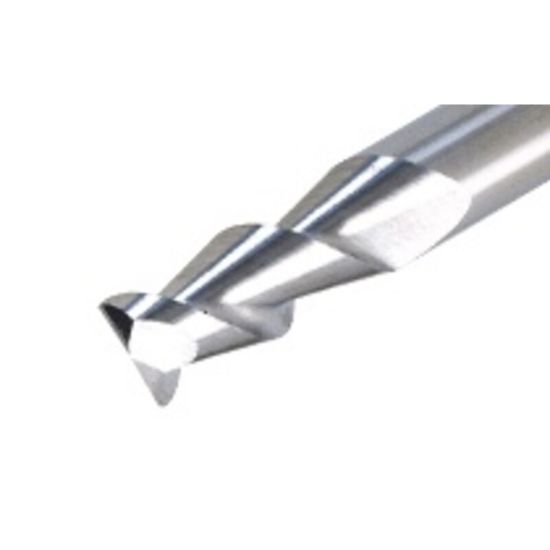

ISCAR ECAI-F-2 437-875-C437 IC08 DIA 7/16 SH 0.4375 LOC 0.8750 OAL 2.7500 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621008
Delivery date: 3-5 days
$99.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Texas
Dimensional Specifications
Helix Angle 55°
Cutter Dia 0.4375 11.11MM - 7/16
Dimension Description 0.438 x 0.438 x 0.875 x 2.750
Shank/Pilot Dia 0.4375 11.11MM - 7/16
End Of Tool Shape Square
Length Of Cut 0.8750 22.23MM
Single/Double End Single End
Flutes/Inserts 2
Length Type Standard
Overall Len 2.7500 69.85MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
