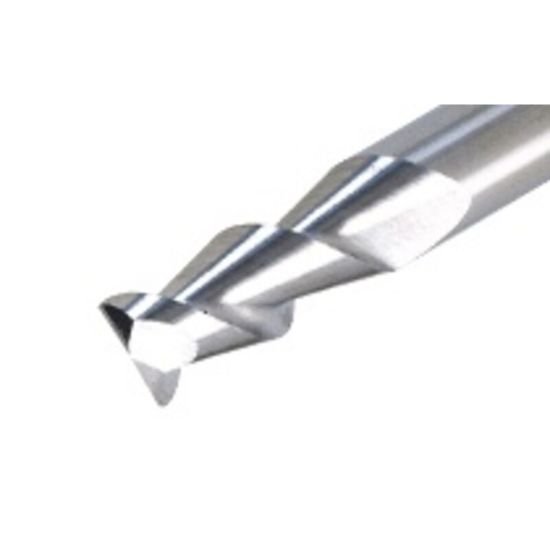

Picture of Iscar ECAI-F-2 437-875-C437 IC08 Dia 7/16 SH 0.4375 LOC 0.8750 OAL2.7500 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Iscar ECAI-F-2 437-875-C437 IC08 Dia 7/16 SH 0.4375 LOC 0.8750 OAL2.7500 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Part Number: ISC5621008 0.438 x 0.438 x 0.875 x 2.750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289495
Vendor: Sussex Tool and Supply
$107.60
ISCAR ECAI-F-2 437-875-C437 IC08 High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 2 Single End SOLIDMILL Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.4375 11.11MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 2
Tool Dia 0.4375 11.11MM - 7/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 55
Center Cutting Center Cutting
