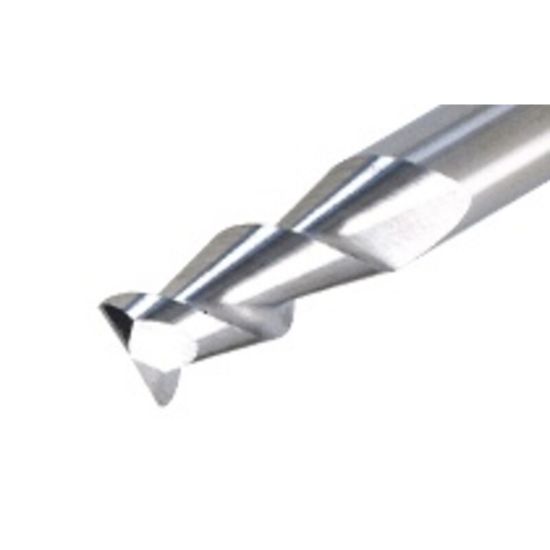

ISCAR ECAI-F-2 375-750-C375 IC08 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621007
Delivery date: 3-5 days
$72.31

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Shipping State Texas
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Length Of Cut 0.7500 19.05MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Overall Len 3.0000 76.20MM
Helix Angle 55°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Dimension Description 0.375 x 0.375 x 0.750 x 3.000
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
