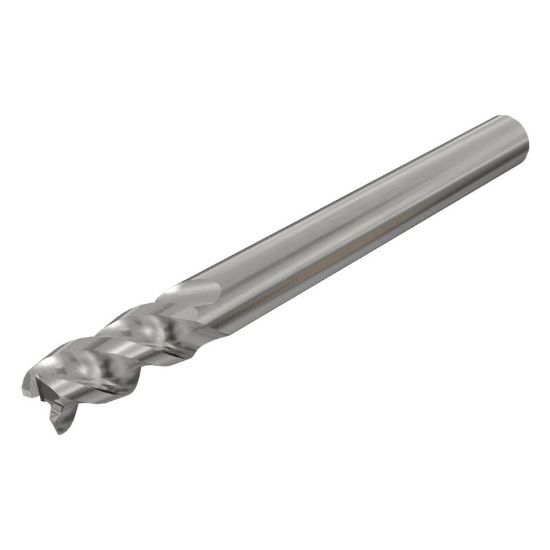

ISCAR ECAI-B-3 500-1.0-C500 IC08 DIA 1/2 SH 0.50 LOC 1.00 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0080 0.20MM SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5622186
Delivery date: 3-5 days
$83.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Millling, Slot Milling
Shipping State Texas
Performance Rating High Performance
Package Size 1
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Corner Radius 0.0080 0.20MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 45°
Dimension Description 0.500 x 0.500 x 1.000 x 3.500
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
