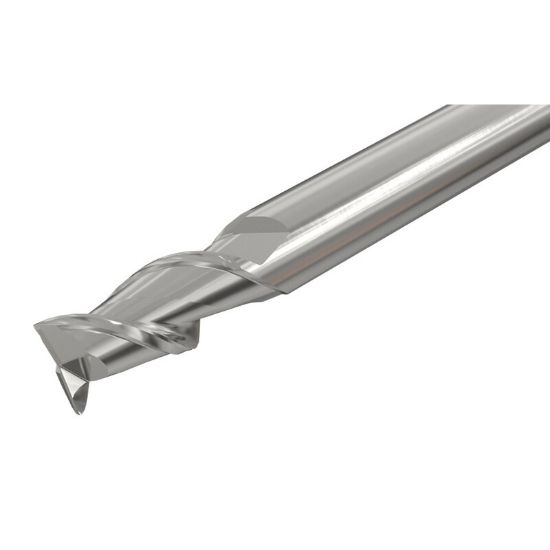

ISCAR ECAI-B-2 500-1.0-C500 IC08 DIA 1/2 SH 0.50 LOC 1.00 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621974
Delivery date: 3-5 days
$83.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA No
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.500 x 0.500 x 1.000 x 3.000
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Flutes/Inserts 2
Length Type Standard
Single/Double End Single End
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
Cut Rating Aluminum, Graphite, Plastic
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
Medical Yes
