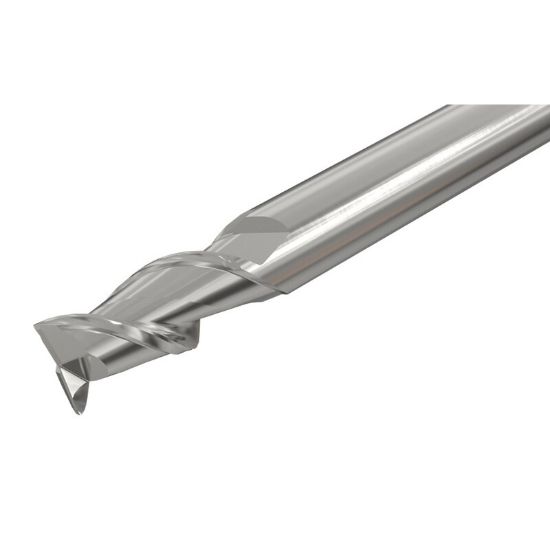

ISCAR ECAI-B-2 375-750-C375 IC08 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC5621973
Delivery date: 3-5 days
$61.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 3.0000 76.20MM
Cutter Dia 0.3750 9.53MM - 3/8
Single/Double End Single End
Flutes/Inserts 2
Length Of Cut 0.7500 19.05MM
Helix Angle 45°
Dimension Description 0.375 x 0.375 x 0.750 x 3.000
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
