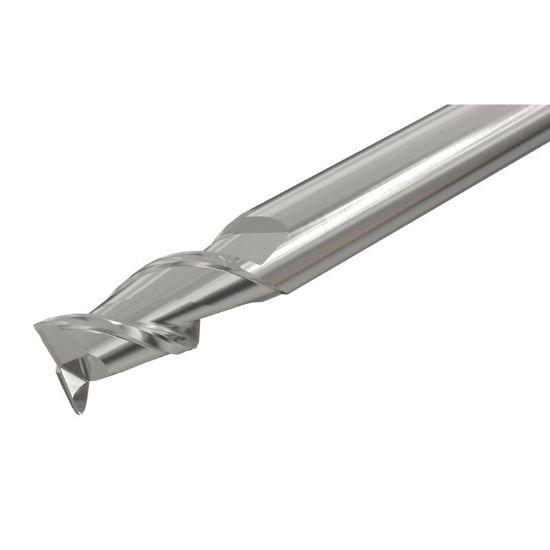

Picture of Iscar ECAI-B-2 250-500-C250 IC08 Dia 1/4 SH 0.2500 LOC 0.50 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Iscar ECAI-B-2 250-500-C250 IC08 Dia 1/4 SH 0.2500 LOC 0.50 OAL2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp SolidMill

Part Number: ISC5621972 0.250 x 0.250 x 0.500 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289536
Vendor: Sussex Tool and Supply
$33.22
ISCAR ECAI-B-2 250-500-C250 IC08 High Helix End Mill Carbide Uncoated Square Sharp Standard Flute Flutes 2 Single End SOLIDMILL Carbide
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 45
Center Cutting Center Cutting
