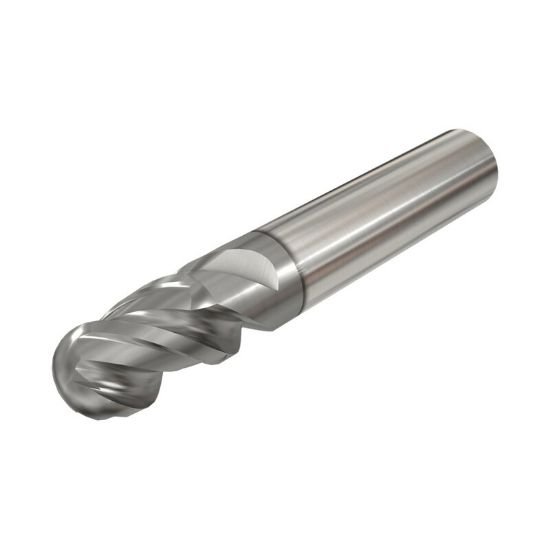

Picture of Iscar EBSI-A-3 125-188-C125 -90 IC900 Dia 1/8 SH 0.1250 LOC 0.1880 OAL1.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall SolidMill

Iscar EBSI-A-3 125-188-C125 -90 IC900 Dia 1/8 SH 0.1250 LOC 0.1880 OAL1.50 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall SolidMill

Part Number: ISC5620980 0.125 x 0.125 x 0.188 x 1.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1289305
Vendor: Sussex Tool and Supply
$49.80
ISCAR EBSI-A-3 125-188-C125 -90 IC900 Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 3 Single End SOLIDMILL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.1250 3.18MM
Overall Length 1.5000 38.10MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Flutes/Inserts 3
Tool Dia 0.1250 3.18MM - 1/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.1880 4.78MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
