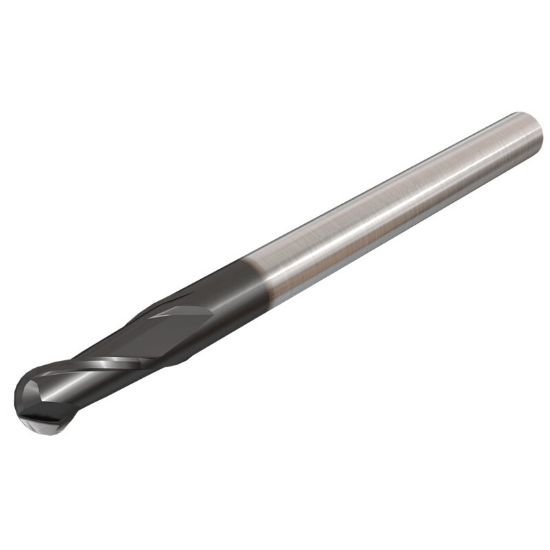

Picture of Iscar EBSI-A-2 500-562-C500 -90 IC900 Dia 1/2 SH 0.50 LOC 0.5620 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall SolidMill

Iscar EBSI-A-2 500-562-C500 -90 IC900 Dia 1/2 SH 0.50 LOC 0.5620 OAL3.00 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall SolidMill

Part Number: ISC5620977 0.500 x 0.500 x 0.562 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1183245
Vendor: Sussex Tool and Supply
$120.94
ISCAR EBSI-A-2 500-562-C500 -90 IC900 Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 2 Single End SOLIDMILL Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Tool Dia 0.5000 12.70MM - 1/2
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5620 14.27MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
