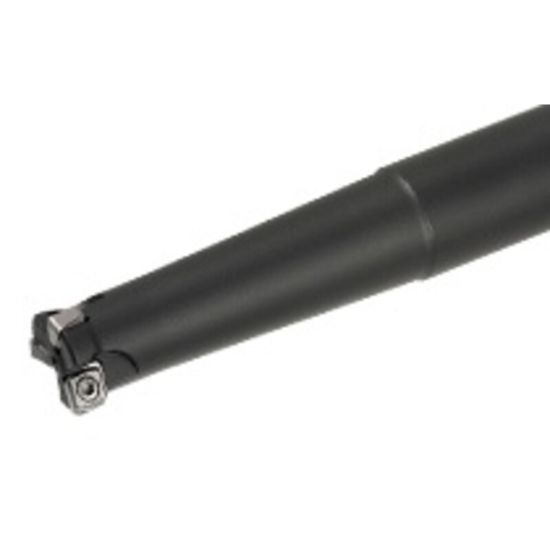

Picture of ISCAR E93CN D.625-2L45C.625-07 Milling Cutter 0.625 Diameter Round 0.625 4.500 OAL 2 Flute

ISCAR E93CN D.625-2L45C.625-07 Milling Cutter 0.625 Diameter Round 0.625 4.500 OAL 2 Flute

ANSI: E93CN D.625-2L45C.625-07

ISO: E93CN D.625-2L45C.625-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103793
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Shipping State Texas
Insert Application Finishing, Semi Finishing
Insert/Tool Tool
Insert Type Negative
Made In USA No
Package Size 1
Dimensional Specifications
Insert Size Ic 7
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6250 15.88MM
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Cut Dia Min 0.6250 15.88MM - 5/8
Overall Len 4.5000 114.30MM
Flutes/Inserts 2
Depth Of Cut Max 0.2000
Cutting & Machining Properties
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Teardrop
Insert Style CN
Max Ramp Angle 4.00°
Coolant Thru No
Fasteners & Connectors
Insert Screw 7002527
