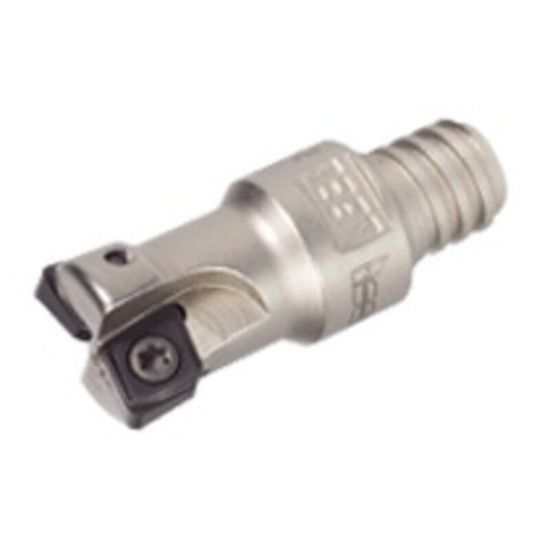

Picture of ISCAR E93CN D.62-2-MMT10-07 Milling Cutter 0.625 Diameter Screw On T10 1.520 OAL 2 Flute

ISCAR E93CN D.62-2-MMT10-07 Milling Cutter 0.625 Diameter Screw On T10 1.520 OAL 2 Flute

ANSI: E93CN D.62-2-MMT10-07

ISO: E93CN D.62-2-MMT10-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104248
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Insert/Tool Tool
Insert Type Negative
Made In USA No
Application Profile Milling, Copy Milling
Package Size 1
Shipping State Texas
Dimensional Specifications
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Type Screw On
Depth Of Cut Max 0.2000
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Overall Len 1.5200 38.61MM
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size T10
Insert Size Ic 7
Cutting & Machining Properties
Max Ramp Angle 4.00°
Coolant Thru No
Insert Shape/Cutter Pocket Shape Teardrop
Insert Style CN
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002527
