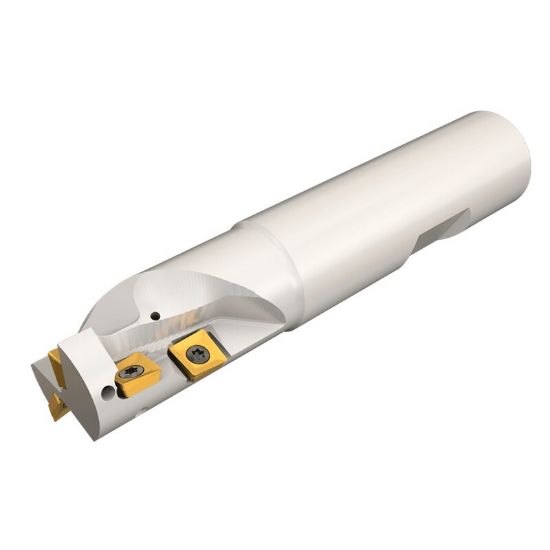

ISCAR E90XC D.75-.88W75-06 Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.750 OAL 5 Flute
ISCAR E90XC D.75-.88W75-06 Milling Cutter 90.0°, Corn Cob 0.750 Diameter Weldon 0.750 3.750 OAL 5 Flute
ANSI: E90XC D.75-.88W75-06
ISO: E90XC D.75-.88W75-06
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
ISCAR
SKU:
ISC3110399
Delivery date:
3-5 days
Call (262) 251-4020 for pricing
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
File Downloads
DXF
STP
STPL
Products specifications
Attribute name
Attribute value
General Product Information
Insert Application
Roughing
Made In USA
No
Insert Type
Positive
Insert/Tool
Tool
Application
Side Milling, Long Edge Milling
Package Size
1
Shipping State
Texas
Dimensional Specifications
Insert Size Ic
6
Depth Of Cut Max
0.8700
Cut Dia Max
0.7500 19.05MM - 3/4
Cutter Dia
0.7500 19.05MM - 3/4
Machine Side Connection Size
0.7500 19.05MM
Flutes/Inserts
5
Cut Dia Min
0.7500 19.05MM - 3/4
Shank/Pilot Dia
0.7500 19.05MM - 3/4
Machine Side Connection Type
Weldon
Overall Len
3.7500 95.25MM
Tool Material
Steel
Cutting & Machining Properties
Cool Sply Type
Through Hole
Coolant Thru
Yes
Insert Shape/Cutter Pocket Shape
Square
Insert Style
SO
Fasteners & Connectors
Insert Screw
7000836
