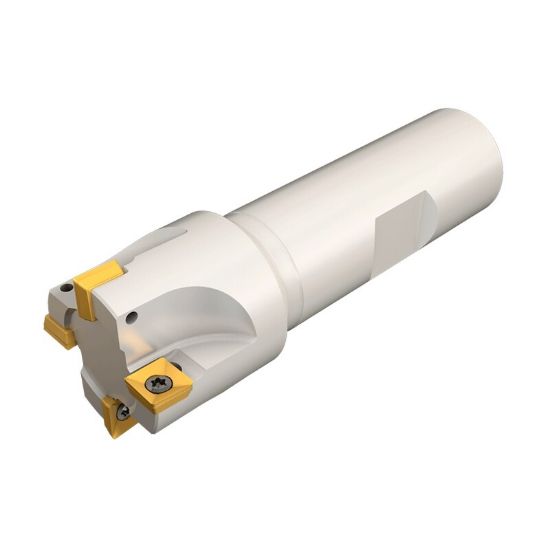

Picture of ISCAR E90X D.75-W .75-06 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.000 OAL 3 Flute

ISCAR E90X D.75-W .75-06 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.000 OAL 3 Flute

ANSI: E90X D.75-W .75-06

ISO: E90X D.75-W .75-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110361
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Insert Size Ic 6
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2200
Flutes/Inserts 3
Cut Dia Max 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Max Ramp Angle 3.00°
Fasteners & Connectors
Insert Screw 7002441
