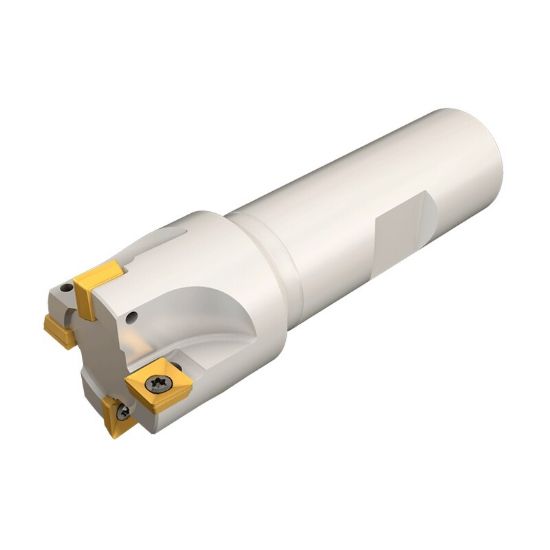

Picture of ISCAR E90X D.62-W .62-06 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 2.750 OAL 2 Flute

ISCAR E90X D.62-W .62-06 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 2.750 OAL 2 Flute

ANSI: E90X D.62-W .62-06

ISO: E90X D.62-W .62-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110360
Delivery date: 3-5 days
$307.20
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2200
Cut Dia Min 0.6250 15.88MM - 5/8
Insert Size Ic 6
Flutes/Inserts 2
Cutter Dia 0.6250 15.88MM - 5/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 2.7500 69.85MM
Cutting & Machining Properties
Max Ramp Angle 3.50°
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000836
