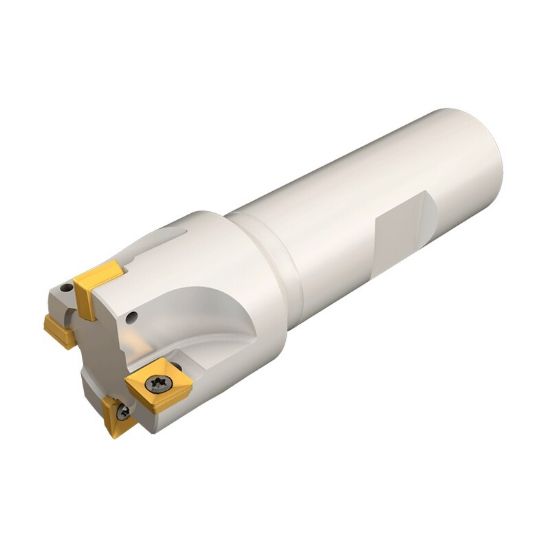

Picture of ISCAR E90X D.56-W .62-06 Milling Cutter 90.0° 0.562 Diameter Weldon 0.625 2.750 OAL 2 Flute

ISCAR E90X D.56-W .62-06 Milling Cutter 90.0° 0.562 Diameter Weldon 0.625 2.750 OAL 2 Flute

ANSI: E90X D.56-W .62-06

ISO: E90X D.56-W .62-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110406
Delivery date: 3-5 days
$264.96
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.2200
Cutter Dia 0.5620 14.27MM
Cut Dia Min 0.5620 14.27MM
Overall Len 2.7500 69.85MM
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cut Dia Max 0.5620 14.27MM
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 6
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru No
Insert Style SO
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7000402
