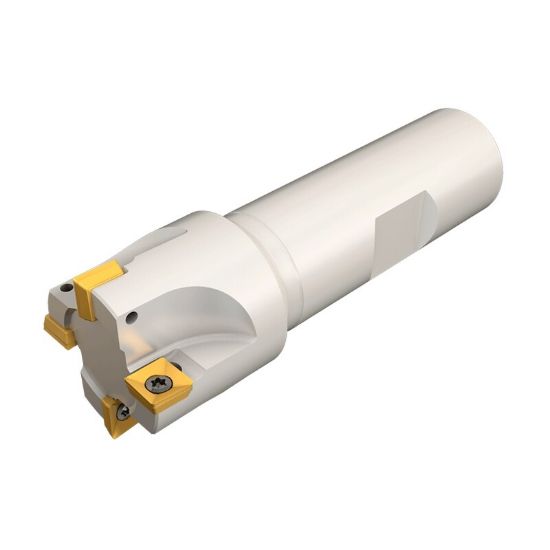

Picture of ISCAR E90X D.50-W .50-06 Milling Cutter 90.0° 0.500 Diameter Weldon 0.500 2.750 OAL 1 Flute

ISCAR E90X D.50-W .50-06 Milling Cutter 90.0° 0.500 Diameter Weldon 0.500 2.750 OAL 1 Flute

ANSI: E90X D.50-W .50-06

ISO: E90X D.50-W .50-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110396
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA No
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Overall Len 2.7500 69.85MM
Machine Side Connection Type Weldon
Flutes/Inserts 1
Insert Size Ic 6
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Dia Max 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Machine Side Connection Size 0.5000 12.70MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000836
