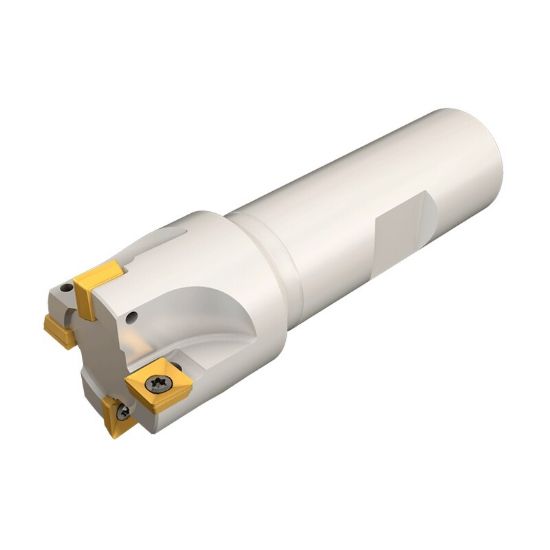

Picture of ISCAR E90X D.31-W .50-06 Milling Cutter 90.0° 0.312 Diameter Weldon 0.500 2.750 OAL 1 Flute

ISCAR E90X D.31-W .50-06 Milling Cutter 90.0° 0.312 Diameter Weldon 0.500 2.750 OAL 1 Flute

ANSI: E90X D.31-W .50-06

ISO: E90X D.31-W .50-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110405
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Shipping State Texas
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 0.3120 7.92MM
Cutter Dia 0.3120 7.92MM
Machine Side Connection Size 0.5000 12.70MM
Insert Size Ic 6
Flutes/Inserts 1
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2200
Cut Dia Min 0.3120 7.92MM
Tool Material Steel
Overall Len 2.7500 69.85MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Coolant Thru No
Max Ramp Angle 0.50°
Fasteners & Connectors
Insert Screw 7000836
