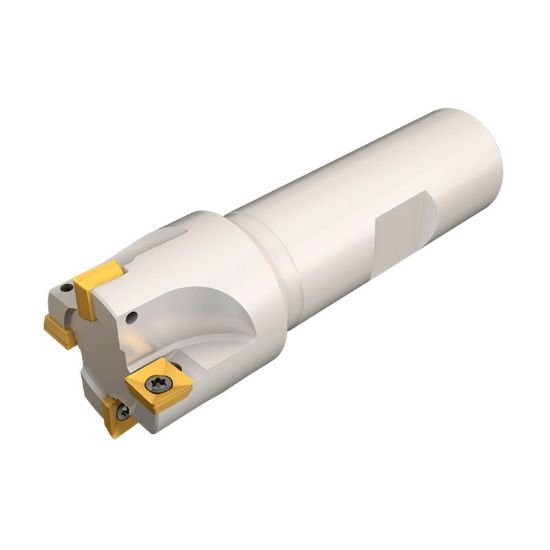

Picture of ISCAR E90X D1.00-W .75-06 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.000 OAL 4 Flute

ISCAR E90X D1.00-W .75-06 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.000 OAL 4 Flute

ANSI: E90X D1.00-W .75-06

ISO: E90X D1.00-W .75-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110431
Delivery date: 3-5 days
$389.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.0000 76.20MM
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2200
Insert Size Ic 6
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Max Ramp Angle 2.50°
Coolant Thru No
Fasteners & Connectors
Insert Screw 7000287
