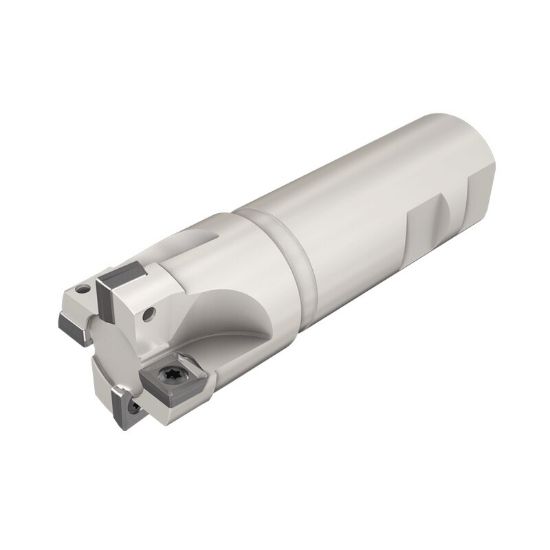

ISCAR E90SP D1.00-W1.00-10 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 3.750 OAL 2 Flute

ANSI: E90SP D1.00-W1.00-10

ISO: E90SP D1.00-W1.00-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3110443
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Side Milling, Slot Milling, Face Milling
Insert Type Positive
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Insert Size Ic 10
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Weldon
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Depth Of Cut Max 0.3800
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type External
Insert Style SP
Coolant Thru No
Max Ramp Angle 3.00°
Fasteners & Connectors
Insert Screw 7000216
