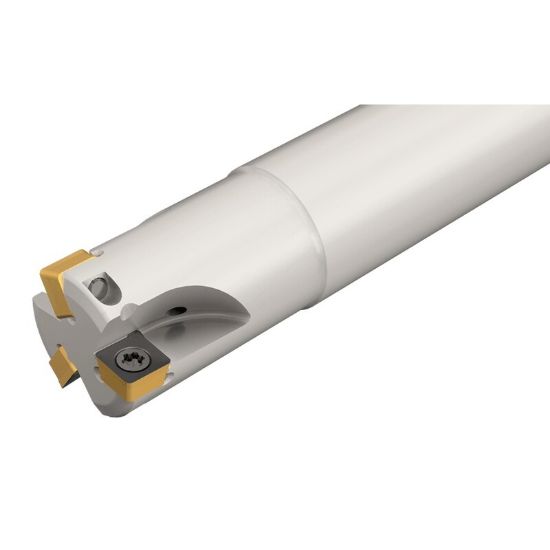

Picture of ISCAR E90SO D.75-06-W.75-04-C Milling Cutter 0.750 Diameter Weldon 0.750 3.500 OAL 6 Flute

ISCAR E90SO D.75-06-W.75-04-C Milling Cutter 0.750 Diameter Weldon 0.750 3.500 OAL 6 Flute

ANSI: E90SO D.75-06-W.75-04-C

ISO: E90SO D.75-06-W.75-04-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3350635
Delivery date: 3-5 days
$445.44

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ramp Milling, Face Milling, Slot Milling, Feed Milling
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 4
Depth Of Cut Max 0.1380
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Max 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Flutes/Inserts 6
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Max Ramp Angle 1.00°
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Coolant Thru No
Fasteners & Connectors
Insert Screw 7006178
