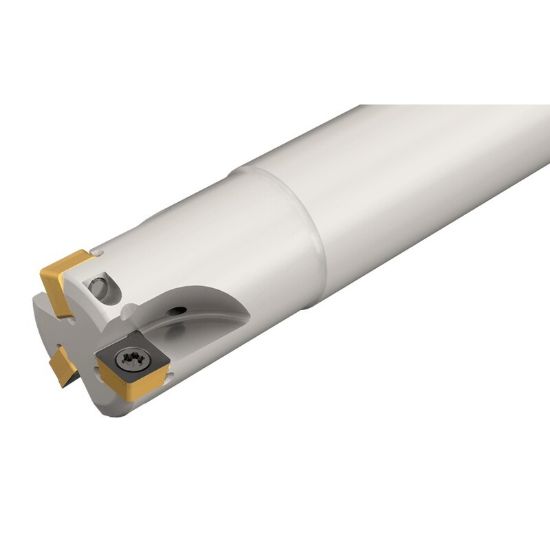

Picture of ISCAR E90SO D.62-05-C.62-04-C Milling Cutter 0.625 Diameter Round 0.625 3.500 OAL 5 Flute

ISCAR E90SO D.62-05-C.62-04-C Milling Cutter 0.625 Diameter Round 0.625 3.500 OAL 5 Flute

ANSI: E90SO D.62-05-C.62-04-C

ISO: E90SO D.62-05-C.62-04-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3340333
Delivery date: 3-5 days
$369.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Package Size 1
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Cut Dia Min 0.6250 15.88MM - 5/8
Overall Len 3.5000 88.90MM
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Insert Size Ic 4
Depth Of Cut Max 0.8700
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Max Ramp Angle 2.00°
Insert Shape/Cutter Pocket Shape Square
Insert Style SO
Cool Sply Type External
Fasteners & Connectors
Insert Screw 4308444
