  • ISCAR E90AC D2.00-1.0W1.25 Milling Cutter 90.0°, Drill Mill 2.000 Diameter Weldon 1.250 5.000 OAL 6 Flute

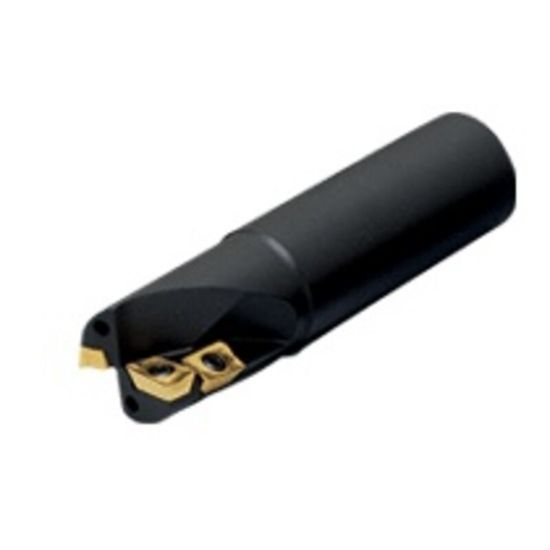

Picture of ISCAR E90AC D2.00-1.0W1.25 Milling Cutter 90.0°, Drill Mill 2.000 Diameter Weldon 1.250 5.000 OAL 6 Flute

ISCAR E90AC D2.00-1.0W1.25 Milling Cutter 90.0°, Drill Mill 2.000 Diameter Weldon 1.250 5.000 OAL 6 Flute

ANSI: E90AC D2.00-1.0W1.25

ISO: E90AC D2.00-1.0W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100669
Delivery date: 3-5 days
$729.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Drilling, Plunge Milling, Shoulder Milling, Slot Milling, Ramp Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 15
Cut Dia Min 2.0000 50.80MM
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Overall Len 5.0000 127.00MM
Depth Of Cut Max 1.7000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style AD
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Parallelogram
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
