  • ISCAR E90AC D1.50-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

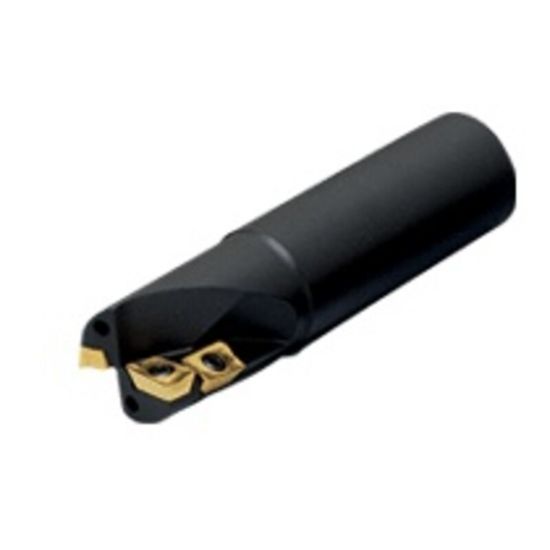

Picture of ISCAR E90AC D1.50-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

ISCAR E90AC D1.50-1.0W1.25 Milling Cutter 90.0°, Drill Mill 1.500 Diameter Weldon 1.250 5.000 OAL 4 Flute

ANSI: E90AC D1.50-1.0W1.25

ISO: E90AC D1.50-1.0W1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3100668
Delivery date: 3-5 days
$598.08

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Shoulder Milling, Slot Milling, Drilling, Plunge Milling
Insert Type Positive
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Depth Of Cut Max 1.0300
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Min 1.5000 38.10MM - 1-1/2
Insert Size Ic 15
Flutes/Inserts 4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AD
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7000402
